Heating element for radiator 480 W
-
19.15€
Buing from us, you get a device with a temperature controller, which, while ensuring high comfort, does not consume a single extra kilowatt of electricity!
Description

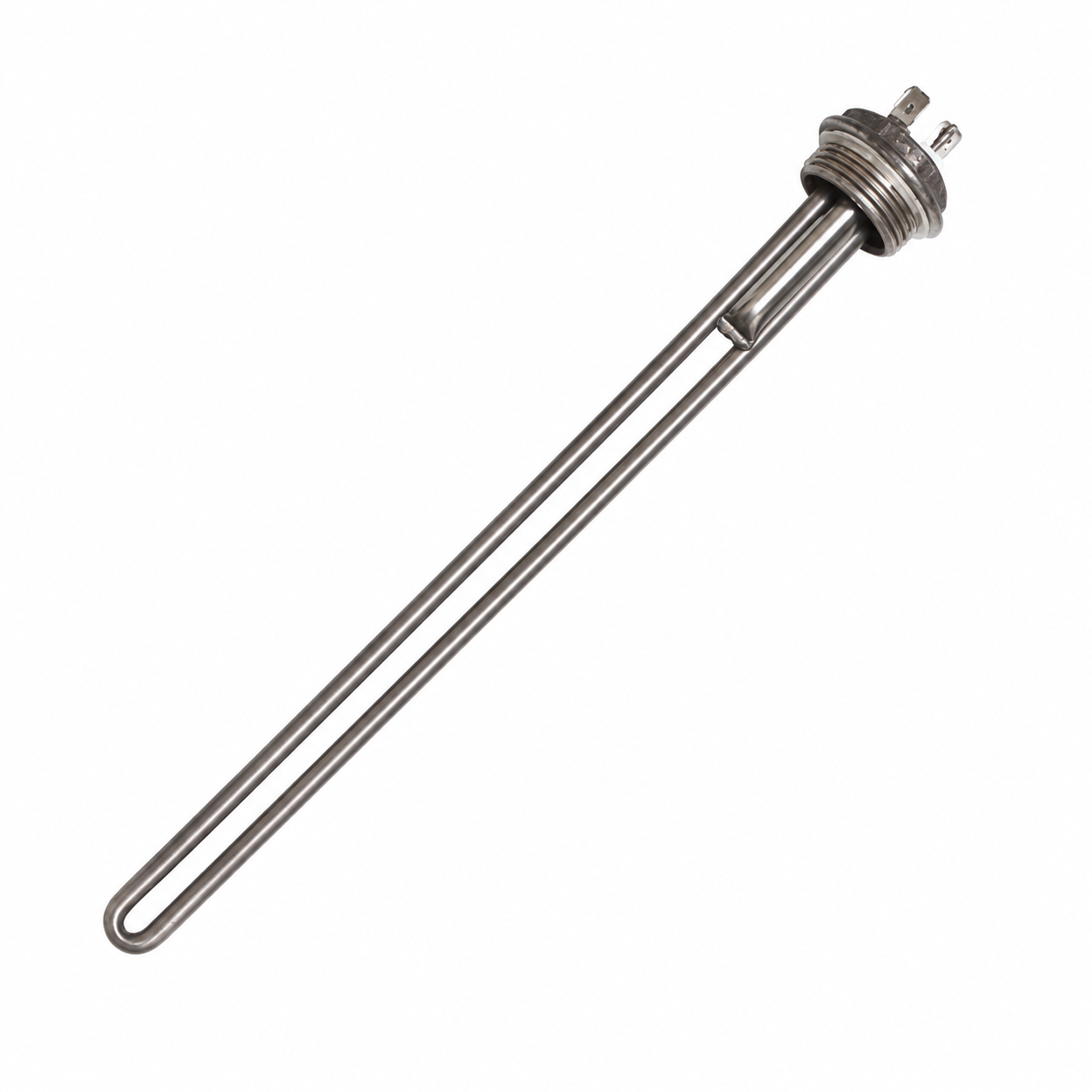

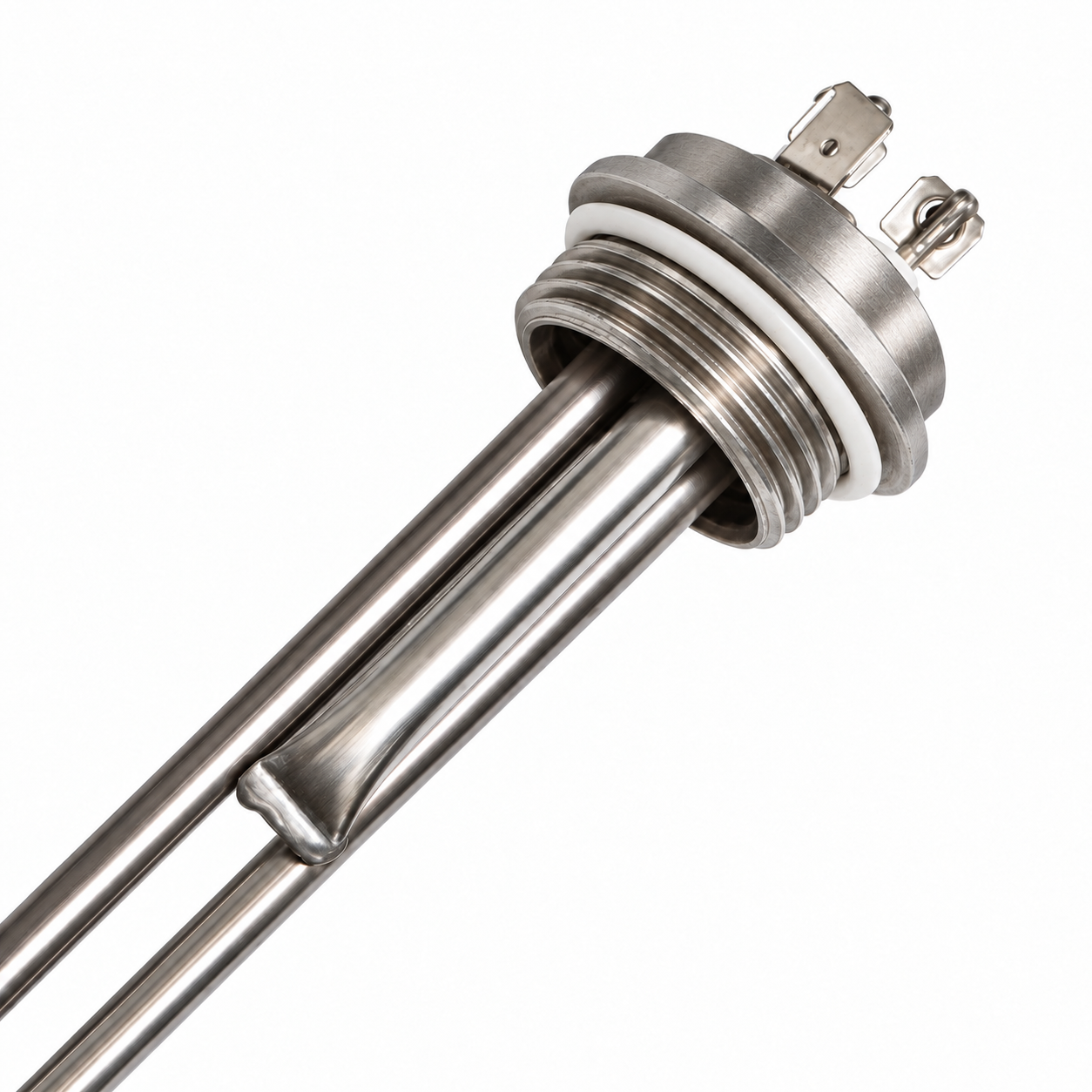

A radiator heating element designed for installation in aluminum, bimetallic, or cast-iron radiators. Managed by a thermostat, it features two power supply terminals and a grounding terminal. The design includes a tube for inserting a temperature sensor. The element has a 1-inch right-hand thread and is tightened with a 32 mm wrench. Includes a heat-resistant sealing gasket.
Specifications:
-
Power Output: 480 W
-
Connection Type / Thread: Right-hand (R)
-
Heating Area: 8–9 m² (with ceiling height up to 3 m)
-
Heating Element Length (in radiator): 285 mm
-
Number of Sections (80 mm width): 4 sections
-
Thread Diameter: 1” (Right-hand) for 32 mm wrench
-
Tube Material: Stainless steel
-
Supply Voltage: 220 V
|
Power (220V) |
Heating element length (in radiator) | Number of sections (width 80 mm) | Heating area (height up to 3 m) |
| 360 Vt | 210 mm | 3 sections | 6-7 m2 |
| 480 Vt | 285 mm | 4 sections | 8-9 m2 |
| 600 Vt | 360 mm | 5 sections | 10-12 m2 |
| 720 Vt | 435 mm | 6 sections |
12-14 m2 |
| 840 Vt | 510 mm | 7 sections | 14-16 m2 |
| 960 Vt | 585 mm | 8 sections | 16-19 m2 |
| 1080 Vt | 660 mm | 9 sections | 18-21 m2 |
| 1200 Vt | 735 mm | 10 sections | 20-24 m2 |
| 1320 Vt | 810 mm | 11 sections | 22-26 m2 |
| 1500 Vt | 885 mm | 12 sections | 24-30 m2 |
