• Heating element for radiator 840 W Right Heating element for radiator 840 W Right
    Heating element for radiator 840 W Right

Heating element for radiator 840 W

  • 24.39€
Pay attention!



Buing from us, you get a device with a temperature controller, which, while ensuring high comfort, does not consume a single extra kilowatt of electricity!



Description

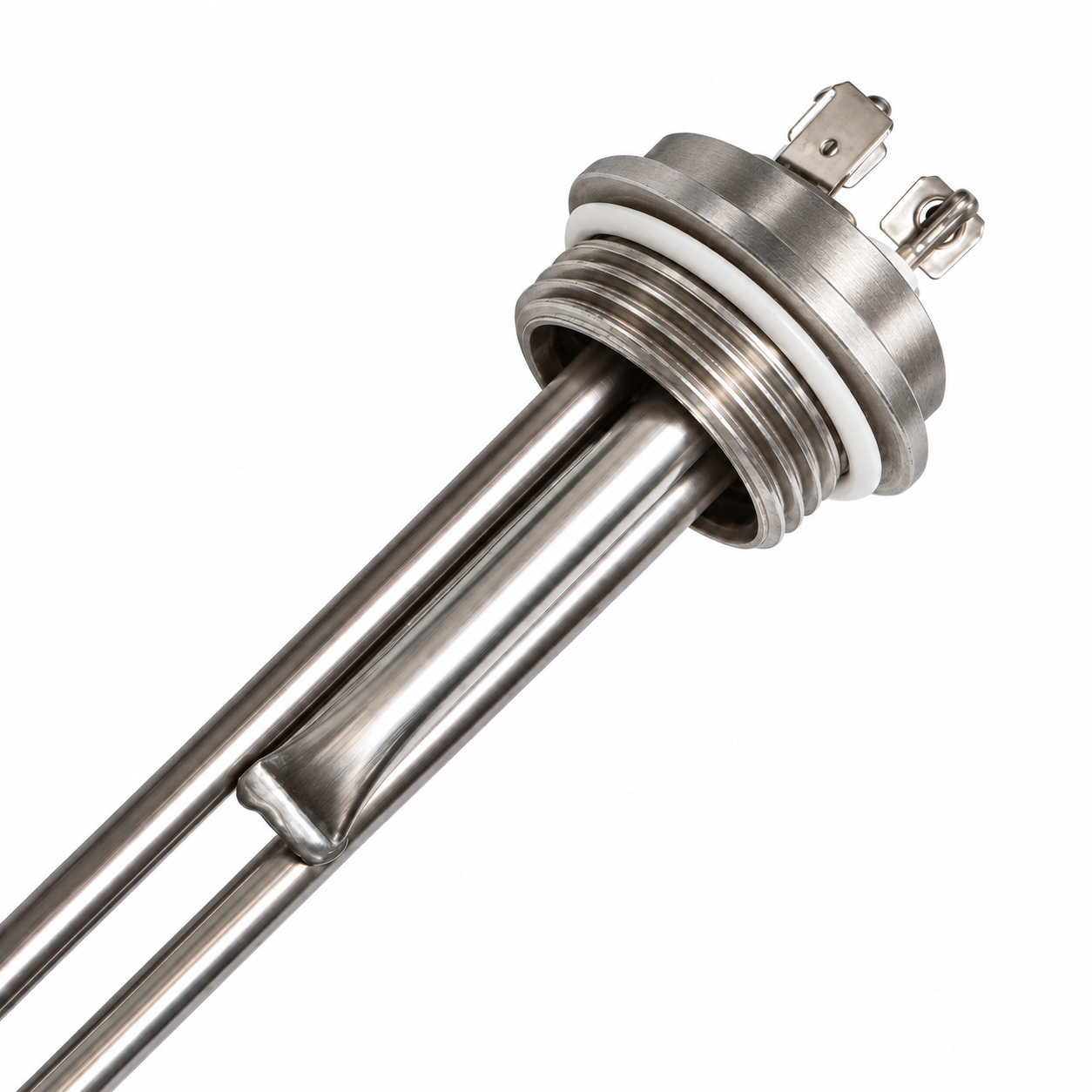

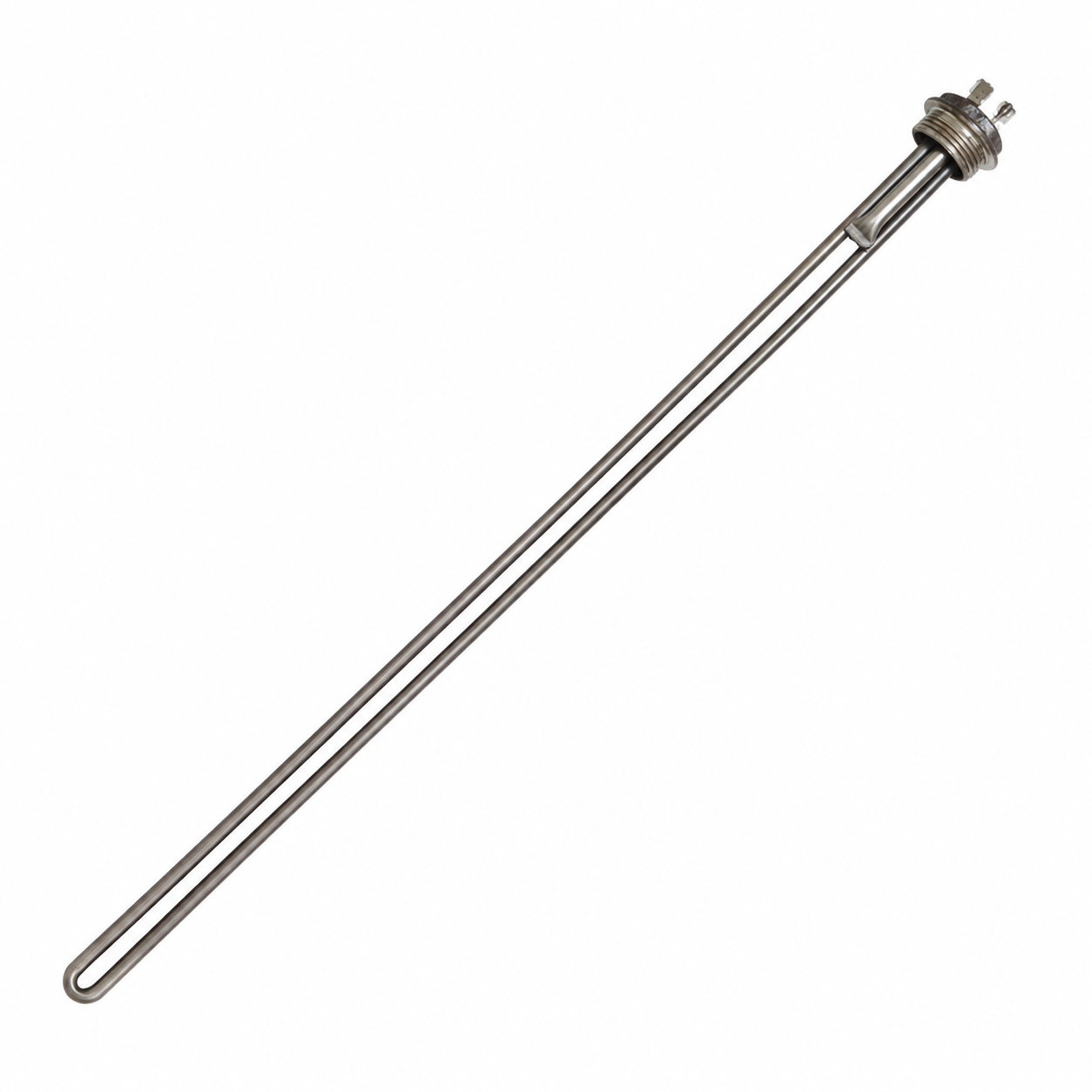

A radiator heating element designed for installation in aluminum, bimetallic, or cast-iron radiators. Managed by a thermostat, it features two power supply terminals and a grounding terminal. The design includes a tube for inserting a temperature sensor. The element has a 1-inch right-hand thread and is tightened with a 32 mm wrench. Includes a heat-resistant sealing gasket.

Specifications:

  • Power Output: 840 W

  • Connection Type / Thread: Right-hand (R)

  • Heating Area: 14–16 m² (with ceiling height up to 3 m)

  • Heating Element Length (in radiator): 510 mm

  • Number of Sections (80 mm width): 7 sections

  • Thread Diameter: 1” (Right-hand) for 32 mm wrench

  • Tube Material: Stainless steel

  • Supply Voltage: 220 V

 Power (220V)

 Heating element length (in radiator)   Number of sections (width 80 mm)   Heating area (height up to 3 m)
360 Vt 210 mm 3 sections 6-7 m2
480 Vt 285 mm 4 sections 8-9 m2
600 Vt 360 mm 5 sections 10-12 m2
720 Vt 435 mm 6 sections

12-14 m2

840 Vt 510 mm 7 sections 14-16 m2
960 Vt 585 mm 8 sections 16-19 m2
1080 Vt 660 mm 9 sections 18-21 m2
1200 Vt 735 mm 10 sections 20-24 m2
1320 Vt 810 mm 11 sections 22-26 m2
1500 Vt 885 mm 12 sections 24-30 m2
